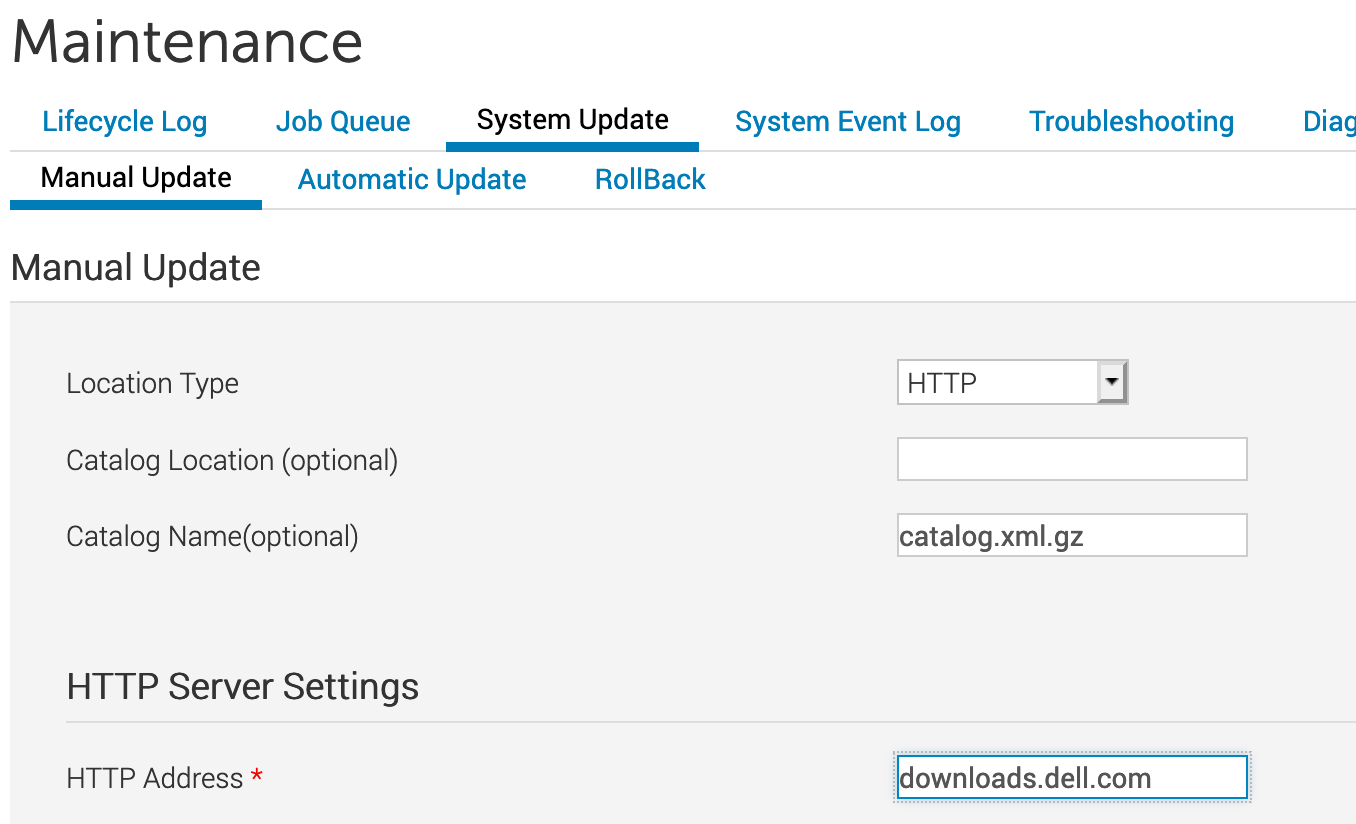

They sure don’t make this process obvious.  Here’s the settings you need:

Location Type: HTTP

Catalog Name: catalog.xml.gz

HTTP address: downloads.dell.com (not URL format)





Now, depending on the age of your iDRAC, it may not let you upgrade directly, even though they’ll give you no hint that that is the issue.  I was trying to go from a 3.x version to 4.00.00 and seeing this garbage:

Unable to run the (installation or configuration) job JID_862273348364 because Unable to extract payloads from Update Package..
RED008 Unable to extract payloads from Update Package.
RED032 Reached maximum size limit allowed for storing firmware images. Deleted all rollback firmware images.
RED096 The maximum iDRAC storage space allocated for storing firmware image files is reached. The firmware image of the earlier version that was stored for a rollback operation is now deleted.

The simple issue was I could not go from the version I was on to the 4.00.00 release.  I needed to go through Dell’s site, download a later 3.x release, install it via local file upload, then the live update worked.

Most of my other firmware updated without issue; BIOS, backplane, SATA controller, Mellanox NIC’s, onboard NIC’s, etc.  It did take 60 to 90 minutes to work its way through those.  However, some failed; those failures include:

• Serial ATA controller – Serial-ATA_Firmware_CHJGV_WN64_DL43_A00_01.EXE
• Dell Internal Dual SD Module, aka IDSDM – Firmware_3N5TF_WN64_1.9_A03.EXE

• OS Collector – Diagnostics_Application_WGJYG_WN64_5.0_A00_02.EXE

I was ultimately able to get Serial ATA to update by choosing to perform only that update.  That of course wasted another 20 to 30 minutes of rebooting cycles, and it always wants to start the guest OS again, which means you have to waste actual eyeball time watching this crap to stop the guest OS from booting if you don’t want it back up until all this work is done.

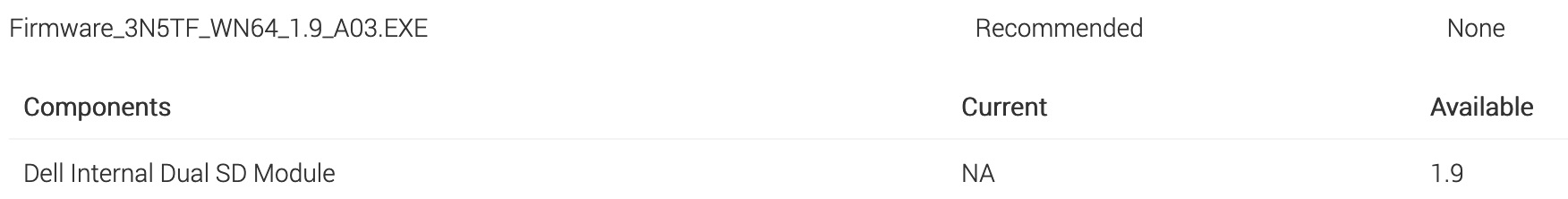

Then I moved on to the IDSDM update, by itself, which allowed it to go on.  Again, another 20-30 min.  However, the outcome is the update wizard endlessly thinking the thing still needs updating.  Apparently it can’t detect the running version:

However, the lifecycle log indicates the update did go on successfully:

PR36 Version change detected for Internal Dual SD Module firmware. Previous version:1.7, Current version:1.9

So I’ll just assume it’s fine.

OS Collector, never works.  I gave up.  Fuck it.

All in all, updating a single R940 wasted a few hours of time.  Seriously, a $30k server wastes several man hours to update properly?  This is why people use Cisco UCS…  it may take a long time to update, but it’s a reliable update, and most of it is not eyeball time because it doesn’t do things that will break an online environment, and will wait for user acknowledgement when it’s at one of those stages.
